QRP audio amplifier
by sv3ora

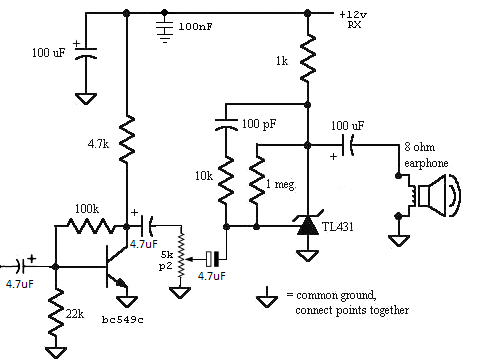

This audio amplifier is an excellent candidate to QRP receivers. Speaker volume and high gain with very few components is achieved. Despite the high gain, the amplifier is stable. Recommended for any low power AF source such as diode detectors and crystal sets. There is some audio distortion but at that low amount of components there is no match to it.
