6CL6 single 50MHz power AMP---6CL61k.gif

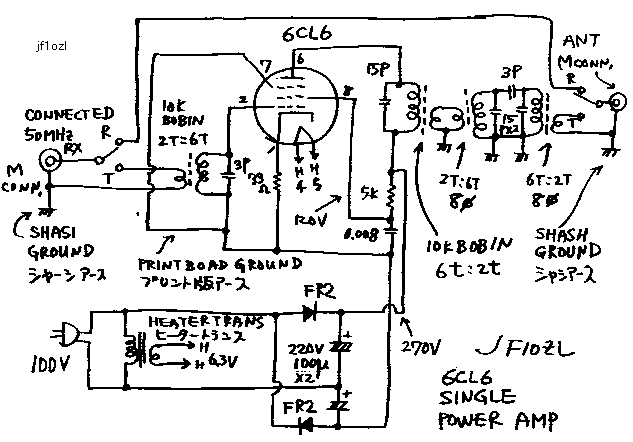

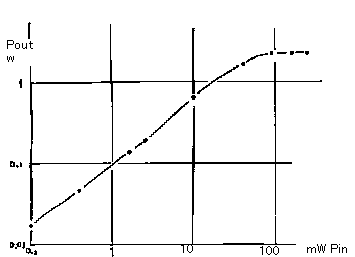

6CL6 is a famous valve. It is known as a driver tube used in the Collins transceiver. I made a 50MHz QRP power AMP with this valve. See fig 1! This is normal grounded cathode amplifier. I use small tank coils (made to use in transistor AMP) on the input and output of this AMP. This is cemi-trans-less type. It uses only a heater transformer. B-voltage is made by the double multiple of 100V AC. The case of it is separated from the ground of AMP circuit. Therefore I do not afraid to get electric shock , when I touch the case of this AMP. It has about 20dB gain. I use this AMP with 100mW transceiver. I got 2W power output from it. I could contact farer station with this AMP.

6CL6 単球 50MHz電力増幅器
6CL6 は,有名な真空管です.ドライバー管として,コリンズ社製トランシーバーで使われた事で,知られています.50MHz QRP パワーアンプをこの真空管で作りました.図1 を見て下さい! これは,普通の陰極接地増幅器です.私は,インプット,およびこのアンプの出力に小さいタンクコイル( トランジスターアンプで使われるやつ) を使いました.これは,セミトランスレス型です.それは,ヒーター変圧器だけを使います.B電圧は,100V 交流の倍電圧整流によって作られまていす.それのケースは,増幅回路の接地から絶縁されています.それゆえに,このアンプのケースに触っても,感電をする恐れはありません.この機械は,20dBの利得を持っています.私は,100mW トランシーバーを親機として、このアンプを使いました.最大出力は2Wでした.私は,このアンプでより遠い局とコンタクトすることができました.
