Honest Dice: 24Sep2000
1. Reason of this hand making: My 4th child ,5 years old , drops the dice from the desk many times while we play a board game. Therefore I decided to make the dice which has no possibility to drop on the floor.

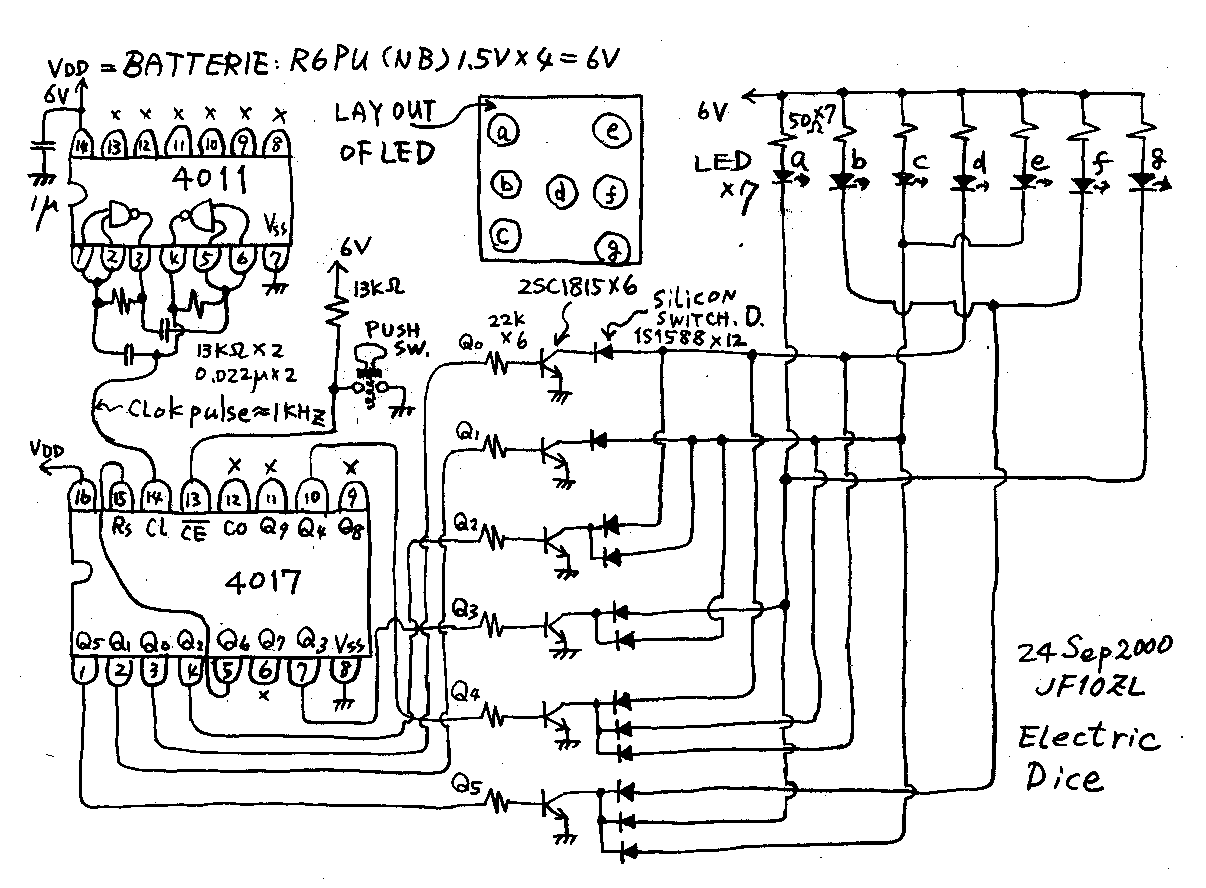

2. IC4011 makes the astable malti-vibrator "astabiler Multivibrator" . IC4017 makes counter. Diode matrix changes the signal Q0-Q5 to the brink of 7 LEDs.***
3. In IC4017 ,the reset input (15) is connected to Q6 output. Therefore this circuit can count from Q0 to Q5.
4. Pull up the "clock enable bar" to stop clock ! Pull down it only in the timing you want to rotate this dice, with momentary push switch!
5. I was at a loss to make this gear with a seven segment LED display. You can do it.
6. The circuit drawing lost it but, the power switch is need between the battery and Vdd.
7. When I played with this gear, I discovered that IC4017 has a memory effect. I will consider about the usage of this effect. If you do not understand what I say, make this gear!
8. I presented this gear to my children. Not only my boy (5 years old) but also my daughter (9 years) are glad. She also may had often got a trouble by the younger brother loosing the dice.
9. This gear got a hint from the German book. "300Schaltungen 286 Wuerfel"

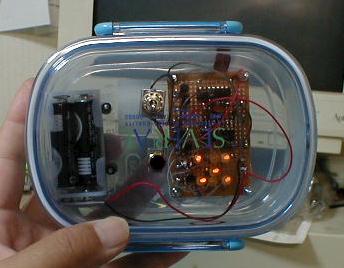

dicerph2.jpg....Dice indicationg ""FIVE". :”5”を表示中の本機




正直さいころ:24Sep2000作
1.製作のいきさつ:最近4人目の子供(5歳)と遊んでいて、やつが良くサイコロを御前(おぜん:テーブル)の下に落とすので、閉口してしまい、御前から落ちないサイコロを作る事にしました。
2.基本原理:4011でだいたい1kHz(だいたいで十分)の矩形波を発生し、それで4017のカウンターを回して1から6まで(ICとしてはQ0から Q5まで)数えます。それでもって、1から6までサイコロと同じようにLEDを光らせる為に、いわゆるダイオードマトリックスで駆動してやります。
3.4017は10進カクンターですが、7番めの出力であるQ6でリセットをかけると、7と数えた瞬間に1(Q0がHigh)になるので、6進カウンターになります。上の回路図でQ6がRs(リセット)につながってるでしょう。
4.「クロックイネーブル負論理端子」を、普段はプルアップしておいて、プッシュスイッチを押した時だけ「クロックイネーブル負論理端子」が接地されてカ ウンターが回るようにします。つまり、普段はサイコロは停まっていて、プッシュスイッチを押した時だけサイコロが転がるわけです。このスイッチは押してい る間だけオンになる、いわゆる「モーメンタリー」でなければなりません。
5.結果の表示は7セグメントを使って数字表示にしようかまよいましたが、サイコロ表示としました。御好きなように作ってください。
6.回路図には表現されていませんが、電源とVddの間に電源スイッチをいれましょう。
7.蛇足ですが、このサイコロで遊んでいて、電源スイッチを入れた瞬間の始めの「目」は、電源を切る前の「目」と同じでした。つまり、IC4017には、記憶能力が在る事を発見しました。TTLとMOSの違いでしょうか。面白い性質でなにかに応用できそうです。
8.写真で御分かりのように、蓋の透明な御弁当箱にいれて子供にプレゼントしました。下の子(ヨッチャン)がサイコロを落とすのには、娘(アユミチャン)もへきへきしていた様で、アユミチャンも喜んでくれました。
