293M RADAR OFFICE - HMCS HAIDA

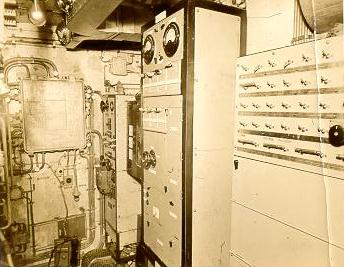

293M Office. Starboard bulkhead.

230 volt, 50 cycle, 3 phase power board; DUG Motor starter; Power board for DUG (180 volt, 500 cycle); Board Distributing 2-AM

RCN Photo HS 1749-52

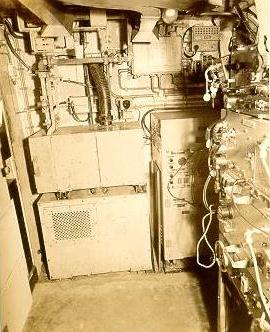

293M office. After bulkhead.

293 transmitter; Output unit; P51 receiver; modulator; 253P IFF controls over modulator. On the port bulkhead, receiving panel L26; Wavemeter G82A and anti-wave clutter unit over L-26; aerial controls unit 20H below.

RCN Photo HS 1749-53

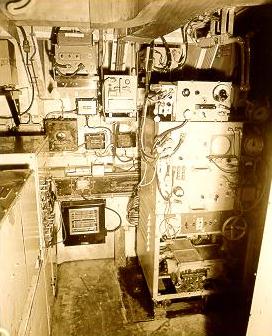

293M Office. After bulkhead

293 transmitter; modulator; On the port bulkhead, 253P IFF (extreme left of photograph) 242 IFF responser, performance meter, modulator and mixer; Receiver panel L26, with wavemeter G82A and anti-wave clutter unit; AQR aerial control table (front cover removed to show control unit 20-H).

RCN Photo HS 1749-54

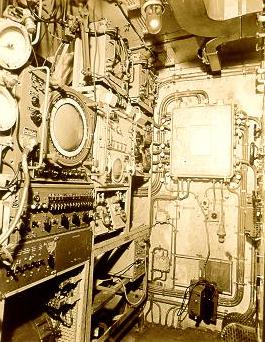

293M Office. Port bulkhead.

PPI Unit; ranging outfit RTE including panel L-37 and two strobe generators; cathode follower unit is below RTE.

RCN Photo HS 1749-55
