AN/SPS6-C Photos

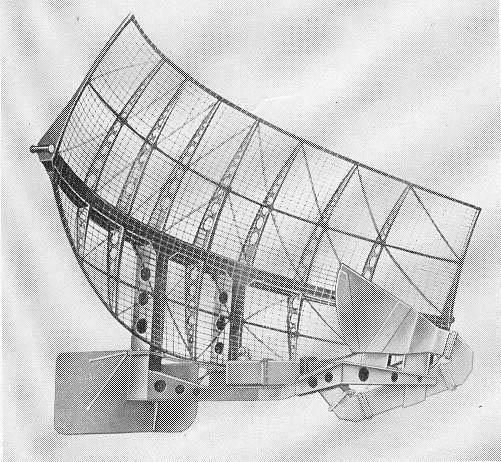

AS-430B antenna mounted on a fixed bracket for illustrative purposes.
Antenna pedestal - AB 274

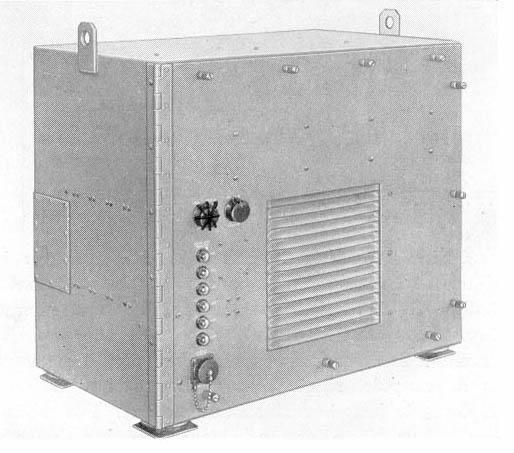

Antenna controller - C 1056

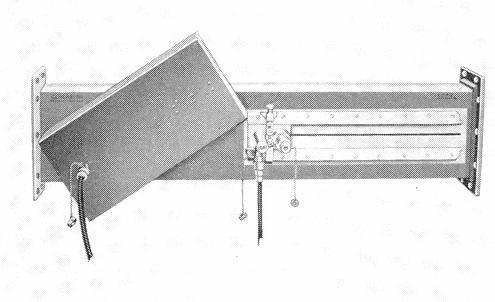

Directional Coupler -  CU 309

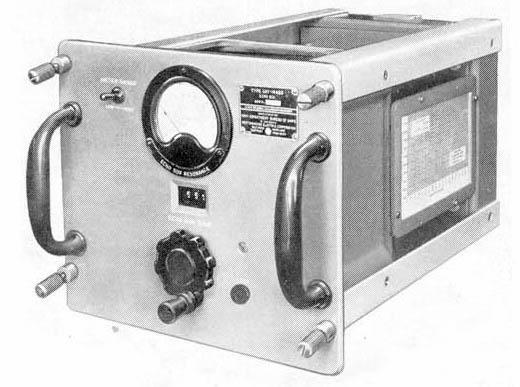

Echo Box  - CAY 14ABS
Type RT 267 main cabinet showning various sub-assemblies.

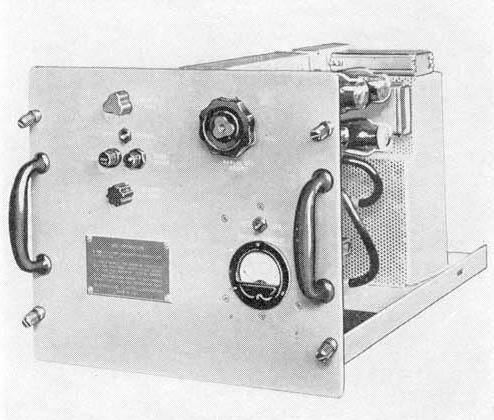

Receiver - R 477

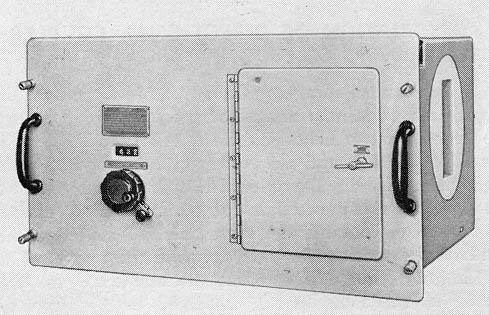

Transmitter- T 350

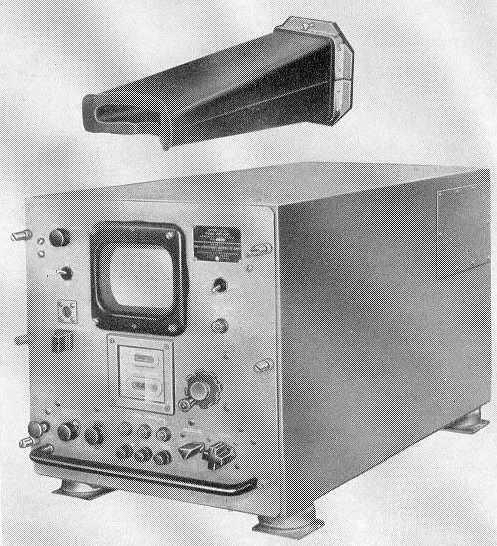

Range Indicator - I 99A
Video Amplifier Cabinet - CRP 50AJW

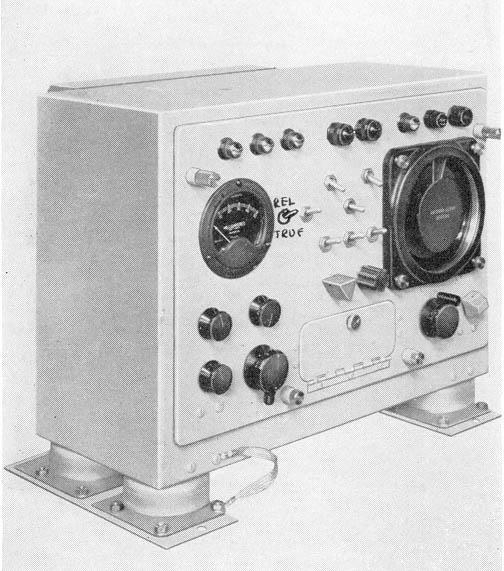

Radar Set control - C 1074. The hand drawn switch on the photo suggests a field modification.

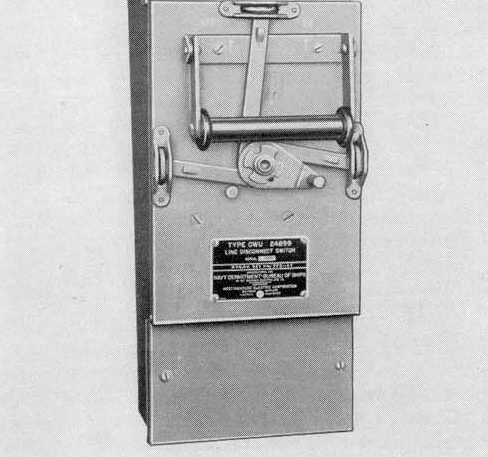

Line Disconnect switch -  CWU 24899
Electrical filter - F 167
Power transformer - TF 115U


Reference:  Instruction Book for AN/SPS6-C.     NAVSHIPS 91620(A) . Bureau of Ships.  July 21, 1952
